MTLD-3220 CNC 4+1 Axis Bridge Saw
Product Introduction
MTLD Series 4 +1 Axis CNC Bridge Cutting Machine can do cross cutting, vertical cutting, 45°miter cutting, diamond, horse belly, arc, circular, L-shaped table top opening, photo positioning, basin hole cutting, basin cutting, support CAD import. Suitable for QUARTZ, SINTERED STONE,GRANITE,MARBLE etc.
VIDEO
Machine Specifications
| Specification | Values | |
| Stroke | Travel (X Axis) | 3200 mm/ 126 in |
| Travel (Y Axis) | 2000 mm/ 78.74 in | |
| Travel (Z Axis) | 400 mm/ 15.74 in | |
| Rotary Axes | Saw head Indexing (C axis) | 0-360.00 degrees |
| Saw head Tilt (A axis) | 0 & 45.00 degrees | |
| Saw Motor | Power | 15KW |
| RPM | 2930 | |
| Spindle | Power | 7.5KW |
| RPM | 24000 | |
| Blade | Size | 350-400 mm |
| Max cutting thickness | 90 mm | |
| Size | Dimensions | 5300x3255x3520mm(LxWxH) |
| Packing | 5300x2250x2200mm(LxWxH) | |
| Container | 20 ft | |
| Frame | Bridge | Cast Iron |
| Shipment | Weight | 3800KGS |
| Warranty | 1 Year | |
| Delivery | 25 days | |
MAIN FEATURES AND ADVANTAGES
| Items | Machining | Samples |

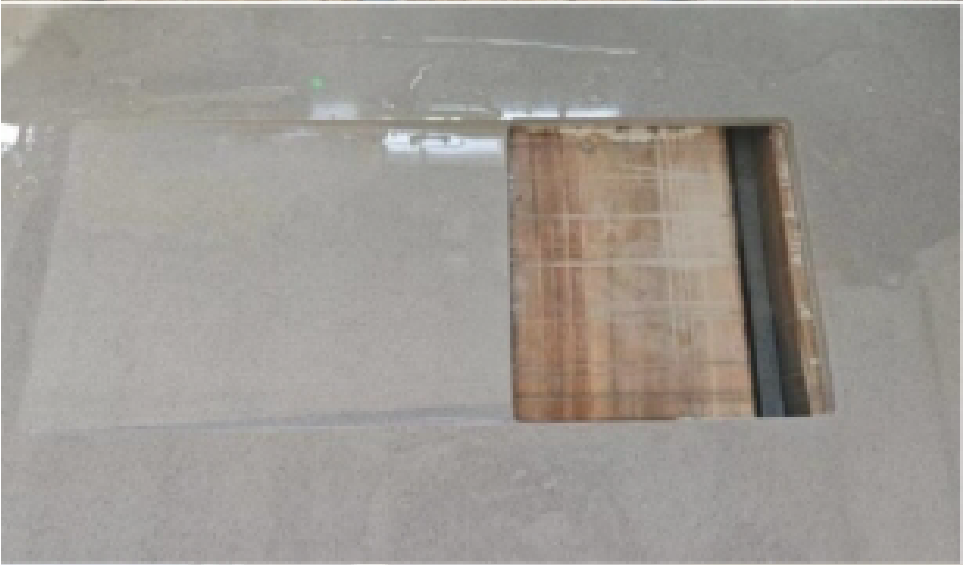

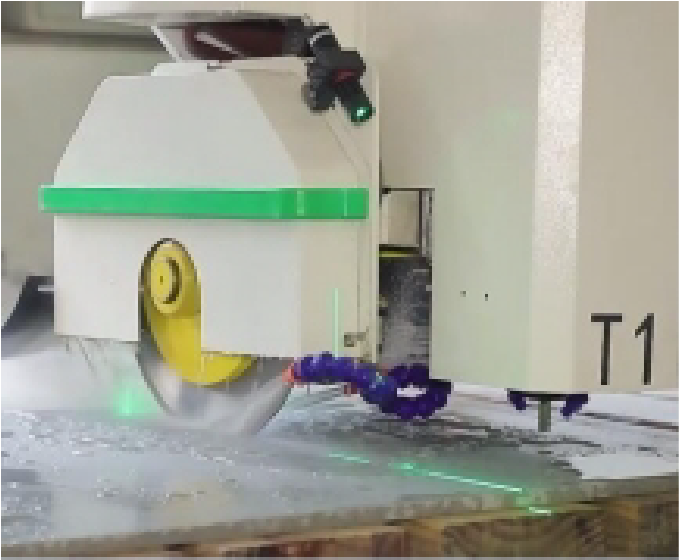

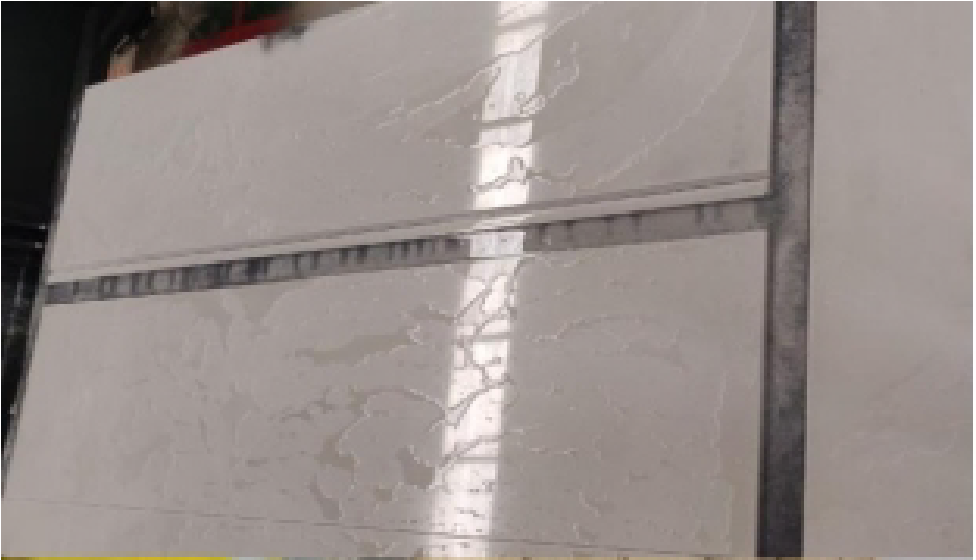

| Kitchen Countertop Cutting |
 |
 |

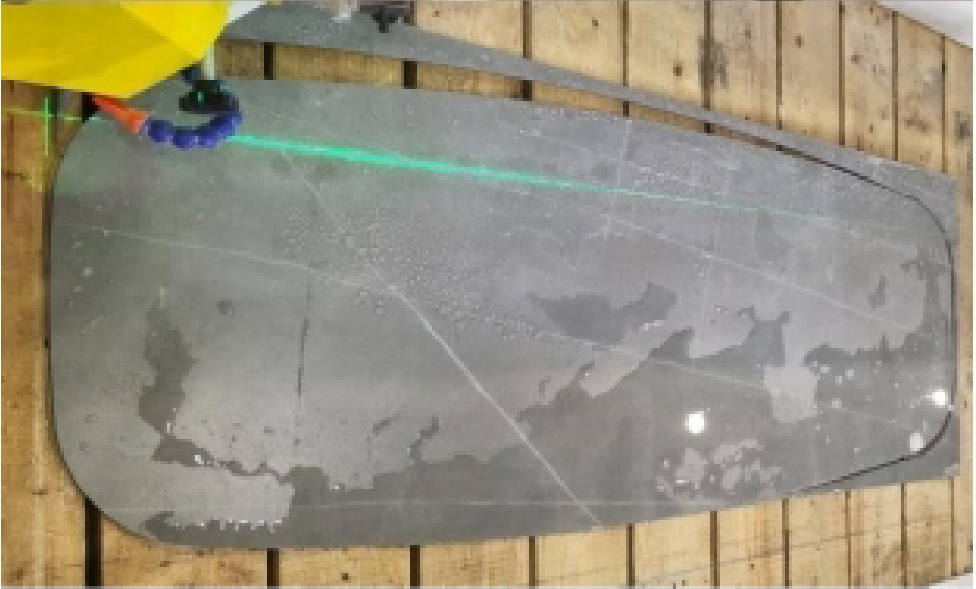

| Table Cutting |  |
 |

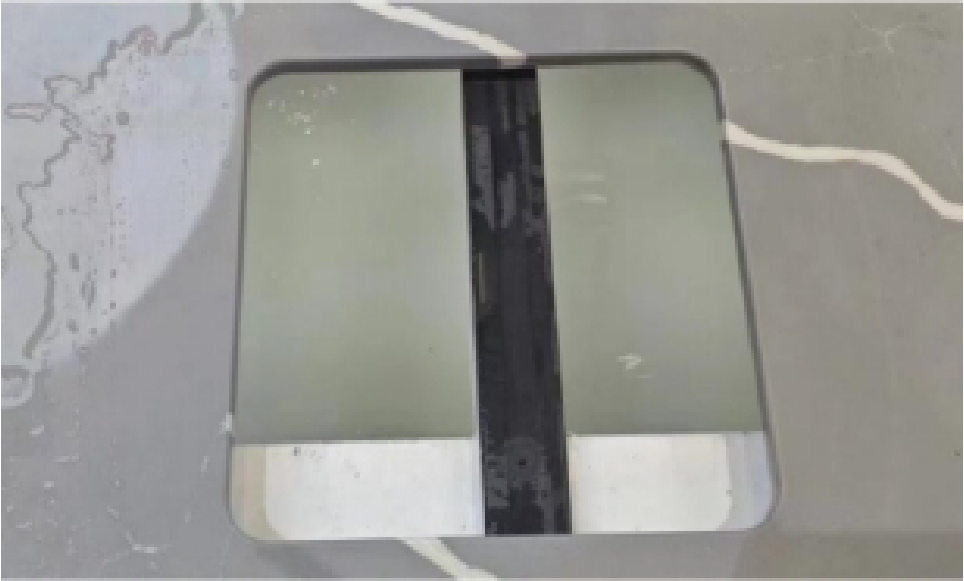

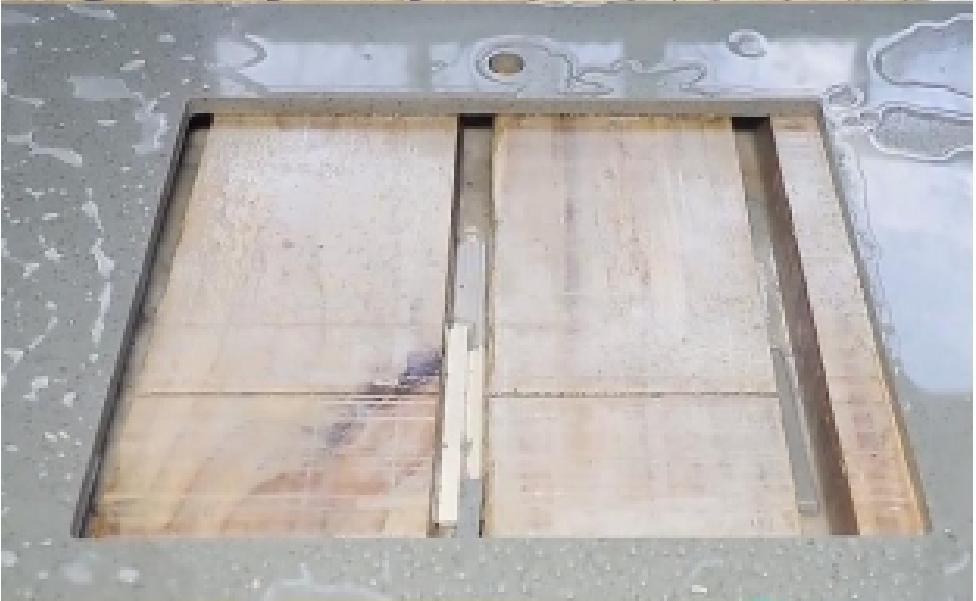

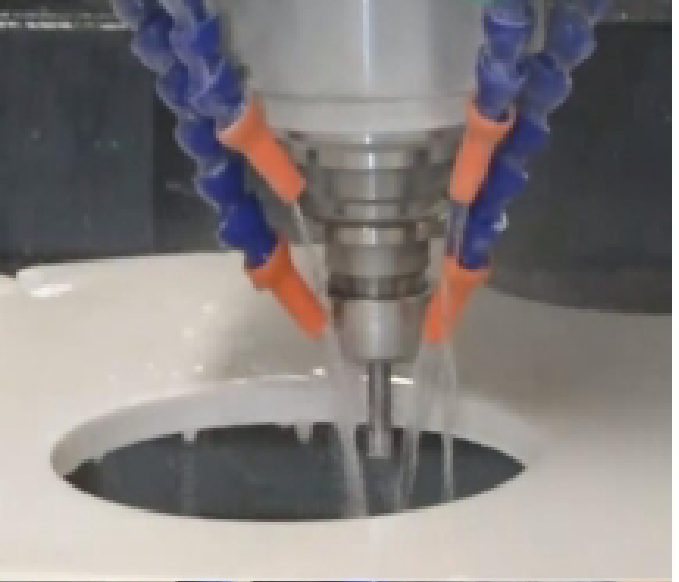

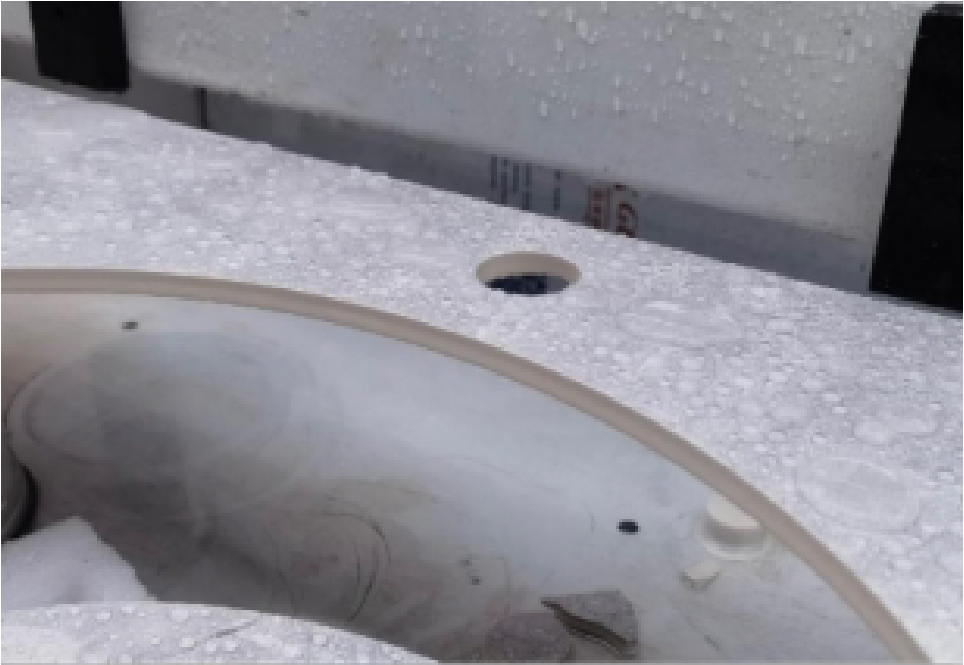

| Sink Cutting |  |
 |

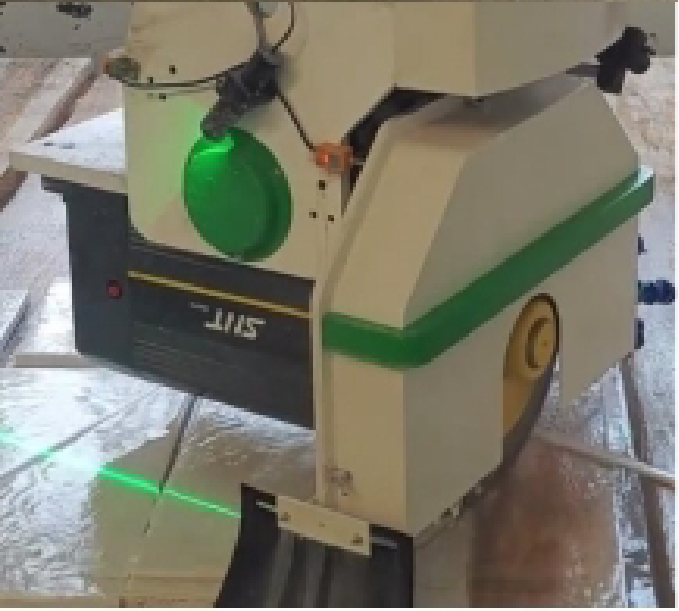

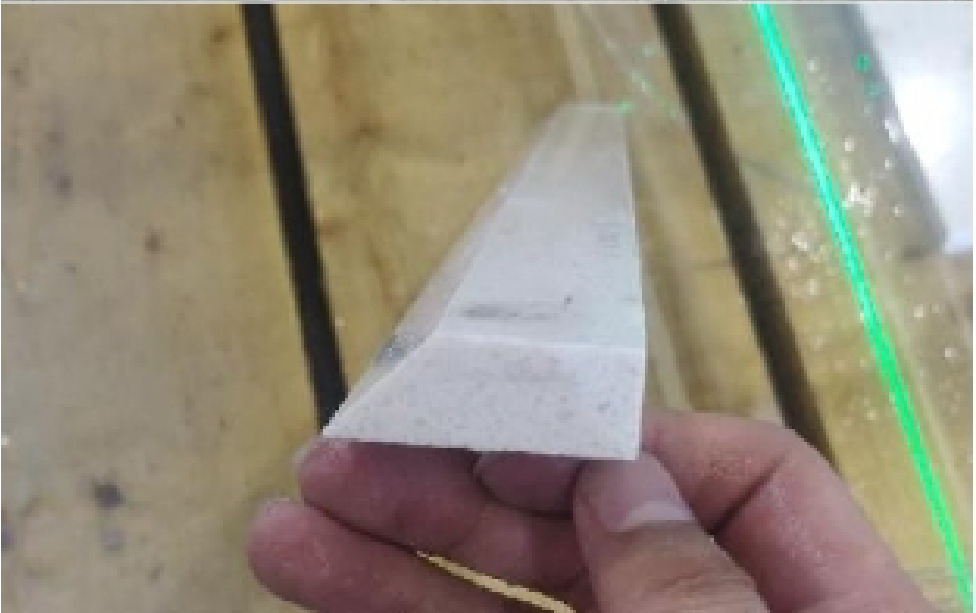

| 45.00 Degrees Cutting |  |
 |

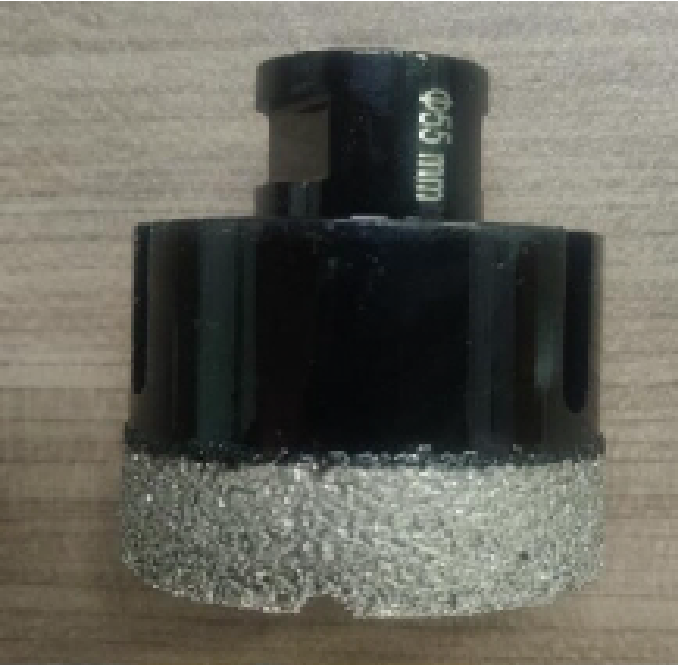

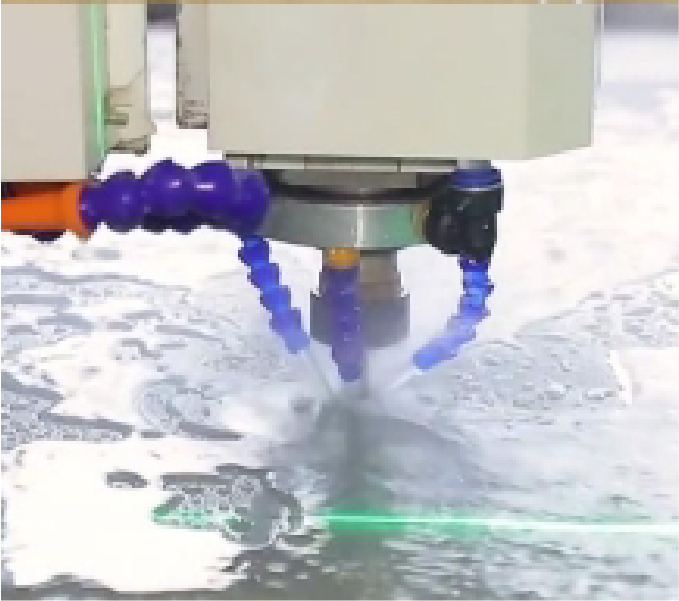

| Drilling Hole |  |
 |

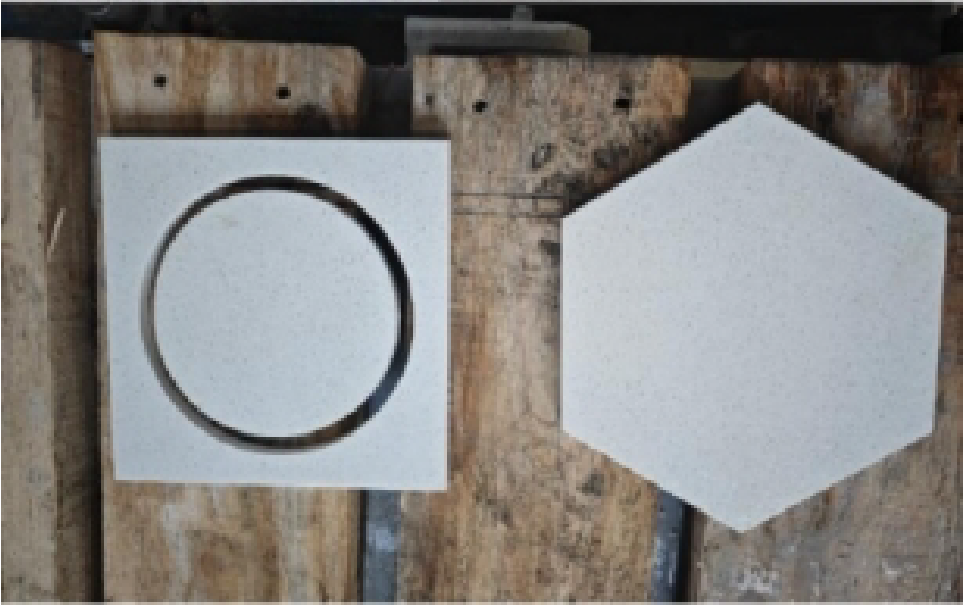

| All kind of shape cutting |  |
 |
| Drain sink |  |
 |
| Polishing |  |
 |

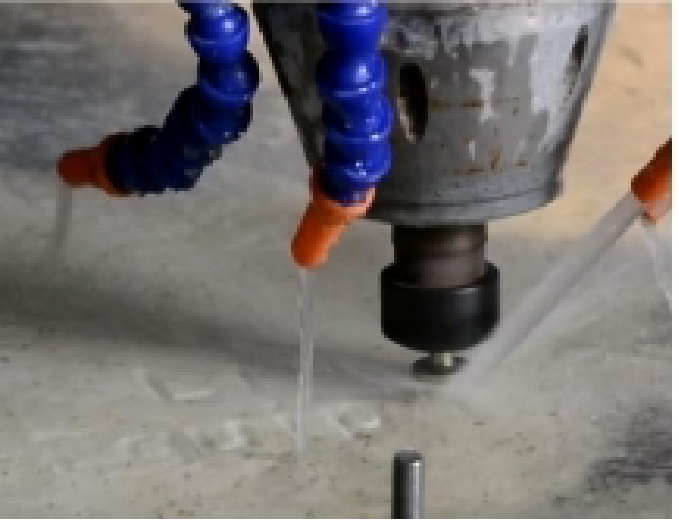

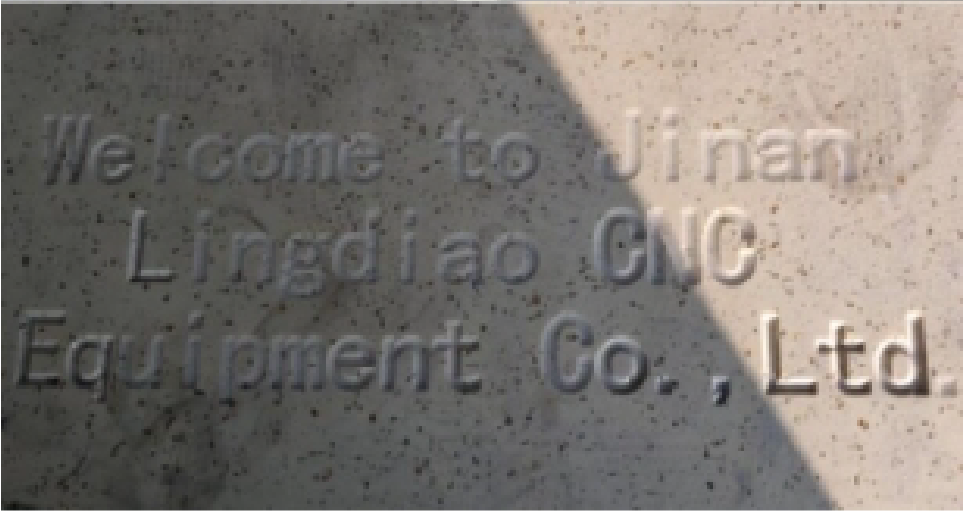

| Words Milling |  |
 |
Machine Picture
