MTCSQ-11 Automatic Stone Flat Edge and Bevelling Edge Polishing Machine

Short Description:

Model: MTCSQ-11

The machine is applicable for stone edge polishing such as marble, granite, quartz and porcelain.


Product Detail

Product Tags

The machine is applicable for stone edge polishing such as marble, granite, quartz and porcelain.

Vertical structure, makes slabs feeding and unload easy.

Cast iron girder, base and polishing head set,  annealing treated, ensures machine of stable and durable quality, keeps longer lifetime.

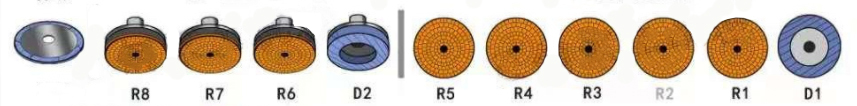

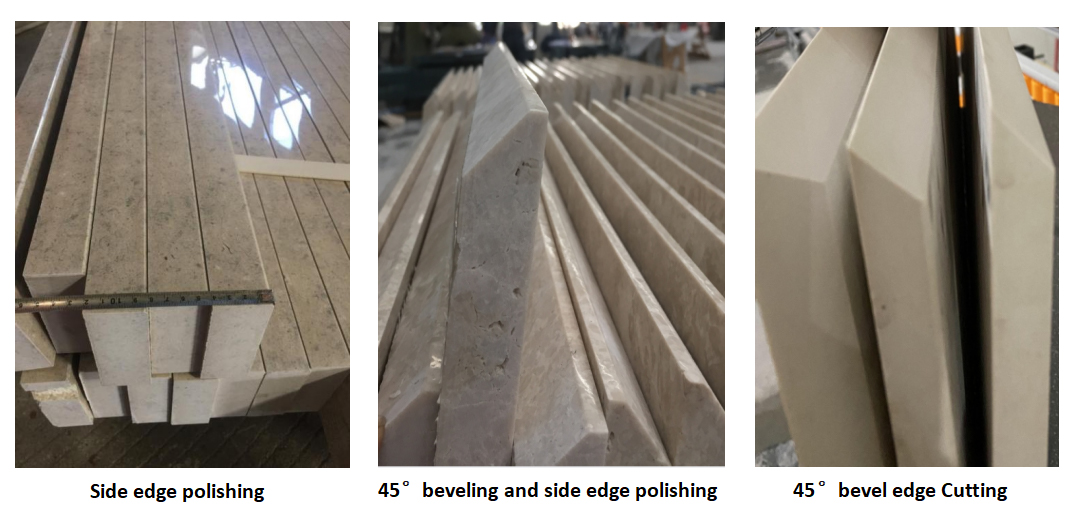

MTCSQ-11 Automatic stone flat edge and beveling edge polishing machine equip with 11 heads, 6 heads for flat edge , 4 heads for 45 degrees beveling edge. 1 head install with blade for 45°cut from bottom. rough grinding, fine grinding,flat edge and beveling edge polishing completely being processed at one time.
edge polisher 2

edge polisher 3
Edge polishing machine process thickness can be 8-80mm.

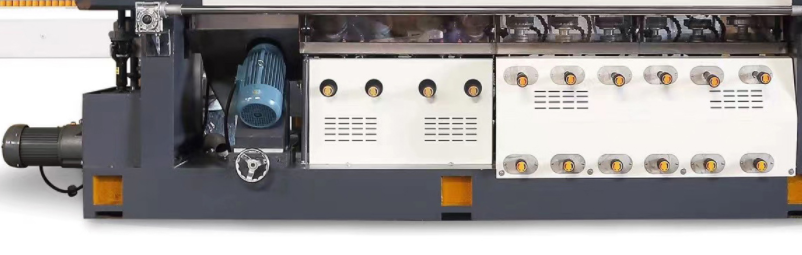

Grinding head up and down adjustable.

Strong motor power gives machines strong working force:

Flat edge 1#( 4.5kw) , 2# 3# 4# 5# 6# (3kw each).
Beveling edge 7#(3kw), 8# 9# 10# (2.2kw)
Bottom 45 degrees beveling cut 11# (5.5kw)

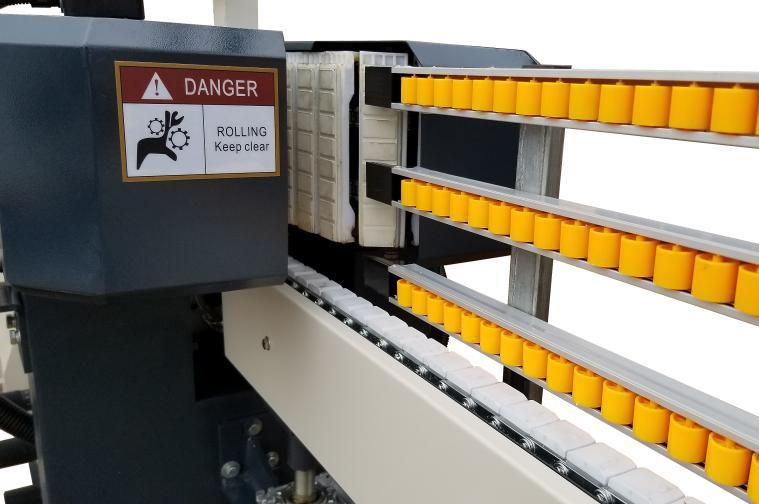

High grade belt-type rubber fixture device, ensure accuracy and stable conveying of slab materials, greatly improve grinding performance and finished products quality.

edge polisher 4

edge polisher 5

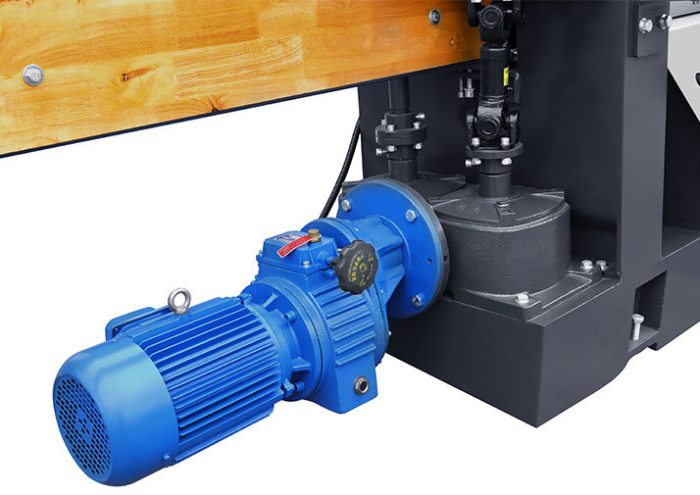

It adopts frequency conversion speed regulation, the speed can be freely and quickly adjusted for better deal with different thickness of slabs .

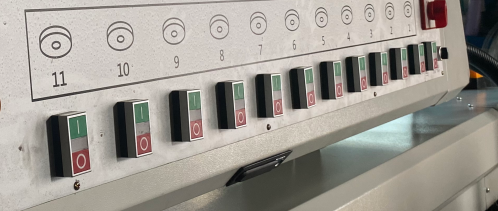

Each polishing head can be controlled independently, for example, if you only need do beveling edge polishing , you can turn off the control switches for the other heads. In this case can better satisfy the actual processing requirement.

edge polisher 6

edge polisher 7

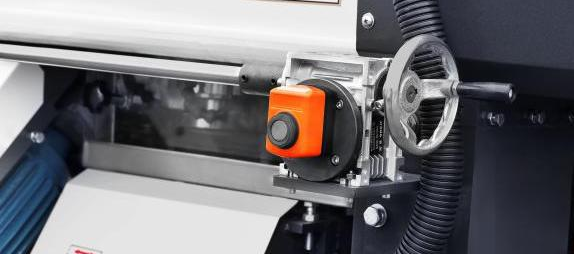

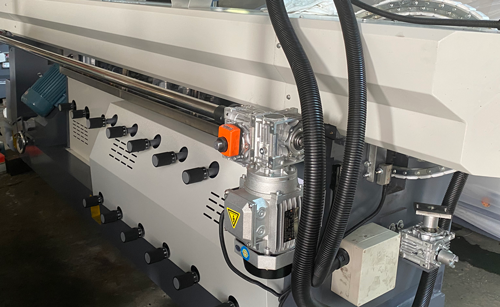

When adjusting different thicknesses, you can refer to the front beam digital display meter, convenient and accurate.

Stone edge polisher volts/frequency can be customized as per required.

Every detail of each machine set are carefully inspected and debugged repeatedly before delivery to ensure that the product is shipped with "zero" defects.
f1c43917

edgepolisher11

edge polisher 14

edge polisher 12

edge polisher 13

Technical Data

Model

MTCSQ-11

Heads Quantity

pcs

11

Feeding Speed

m/min

0.7-5

Min Processing Size

mm

100*100

Processing Thickness

mm

3-60

Total Power

kw

38

Overall Dimension

mm

7800*1000*2500

Weight

kg

3800
